FLARM Core

The PowerFLARM Core is both the heart and the brain of the FLARM system. It handles all radio communication and data processing as well as collision risk calculations. The device is mounted behind the panel together with other avionics boxes. It’s connected to a FLARM display which is mounted in the panel. Optionally, PowerFLARM Core can also be connected to compatible EFIS displays.
Manufacturer: FLARM

PowerFLARM Core comes in two variants, Pure and ADS-B. The ADS-B variant has all the functionality of Pure, but with an additional SSR (Transponder) and ADS-B receiver for 1090ES. In addition to FLARM equipped aircraft, you will also be able to see transponder equipped aircraft. Aircraft without 1090ES ADS-B Out capability will be shown with approximate range and altitude difference (Mode-C/S). Aircraft with ADS-B Out will be shown identical to FLARM aircraft.

CORE PURECORE ADS-BPORTABLE ADS-B
Integrated display
Built-in GPS Antenna
Second FLARM Receiving Antenna16
Option to run on batteries (6 AA; not included)
SSR 1090 MHz Receiver (Mode A/C/S)
ADS-B 1090 MHz Receiver
USB port for data readout and updates
microSD Card slot for data readout and updates
USB port for data readout and updates
Data port #1, 8P8C/RJ45
Data port #2, D-sub DE-9
External Audio Output
IGC Flight Recorder Approval2
Engine Noise Level (ENL) Recording3
Obstacle Database with Warnings4
EASA Minor Change Approval (MCA)5

●  Included; ○ Optional

1Additional antenna sold separately; 2Up to and including Diamonds; 3Requires IGC Flight Recorder Approval option; 4Available for selected regions; 5Available for selected aircraft types 6License included;

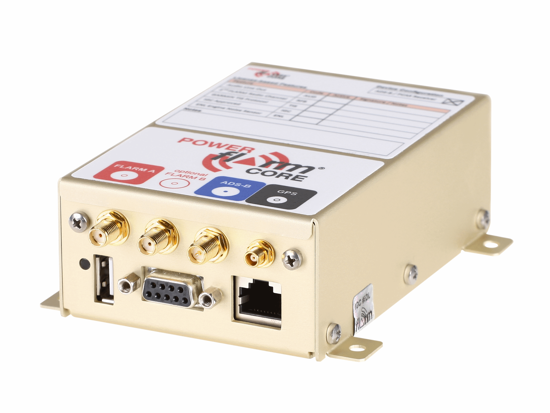

Picture of Flarm Core ADS-B
Flarm Core ADS-B
The PowerFLARM Core is both the heart and the brain of the FLARM system. It handles all radio communication and data processing as well as collision risk calculations.
SKU: FLAPFC11E
Picture of Flarm Core PURE
Flarm Core PURE
The PowerFLARM Core is both the heart and the brain of the FLARM system. It handles all radio communication and data processing as well as collision risk calculations.
SKU: FLAPFD11E
Flarm portable
Flarm Core Portable
The PowerFLARM Core is both the heart and the brain of the FLARM system. It handles all radio communication and data processing as well as collision risk calculations.
SKU: FLAPFP24E
